Transparency


Making an object transparent can often be used to place on top of other object to get the special blending of colors effect. It can also be used to remove

the background color or create softness of an image. There are two kinds of transparency in PageFocus. The "See-thru" transparency and color blending

transparency. It is an add-on feature and can be removed and restore the image back to non-transparency. You can also quickly undo any changes by

using the "undo"

button. It is fun and easy to play around and create objects with special visual effects. Color Blending Transparency works on image

objects only. You can convert a PageFocus object to Bitmap to add this feature.


See-thru transparency


Change an object into a see-thru object, place on top of another object or add a background color to create various special blending effects. An object

can be turned into a transparent object by selecting Display and Effect

/NOT_XOR (or select Object/Display ad Effect menu) or select Object/Base

Properties and check the Transparent. You can uncheck the selection to remove the See-thru transparency from the object.

Home > Image > Transparency

Alpha Channel/Alpha Blending


Transparent Color turns a color into total transparency. Alpha Channel /Alpha Blending add the flexibility of degree of transparency from 0 to 255 to an

image or to a color.


Notes: Bitmap (pixel-based) images may use the Alpha Channel to specify how the image pixels blend with the background surface (image) when the

image is displayed. Alpha channel specifies alpha value for each pixel of the image. The value ranges from 0 (100% transparent) to 255 (100% opaque).

PageFocus stores Bitmap in RGB channels. If Alpha Channel is required, then it is stored as R+G+B+Alpha channels. Since it uses 8 bit per channel, we have

24-bit image for RGB channels and 32-bit image for RGBA channels. However, not every image file format stores the alpha channel. For example, the

popular JPG file format only stores RGB channels. To store Alpha channel, you can use PNG or TIFF file format. By default, PageFocus uses PNG format

when alpha channel is required. PNG file size is larger then the corresponding JPG file. This is particular true when one adds up the alpha channel.


Alpha blending determines how object color blends into the background. It is often used to provide special visual effects or to soften drawings (or images)

that are drawn on top of certain background. Alpha value changes from 0 (completely transparent) to 255 (opaque). Select the Alpha(Blending) tool

to set the Alpha value. As you move the sliding bar, the image will show the degree of transparency. Alpha blending applies to the whole object.


The following images shows the blending effects of a Alpha value 255 (100% opaque) and a Alpha value 135 images on top of the two green and white

base images.

Term of Use          Privacy

Products       Downloads       Orders       FAQ       Contact us

Color-blending Transparency


Transparent Color


Use Transparent Color to make a color in an image into transparency. Same color in an image usually covers a range of RGB colors. To turn a single color

into transparent color, use the Filter Color first to filter a range of similar colors into one color. Right-click on the image and select Transparent Color or

select Bitmap/Transparent Color. Select Select with a pointer and click on the color and it will turn to transparent color. Place on top of the original image

to get a special visual image. Using Pick Color Pointer is always the easiest way to select colors.

=

+

Create the special blending image

Place on top of this image

Add See-thru transparency

On top of purple background

On top of blue background

On top of green background

Filter to yellow color

Make yellow color transparent

Place on top of the original image

Crop the image

Original photo image

Remove Background Colors:


1.

Use Filter Color to turn background colors to white.

2.

Right click and select Transparent Color/Select with a

Pointer.

3.

Point and turn the white color into transparency.

Base images

Alpha value 256

Alpha value 135

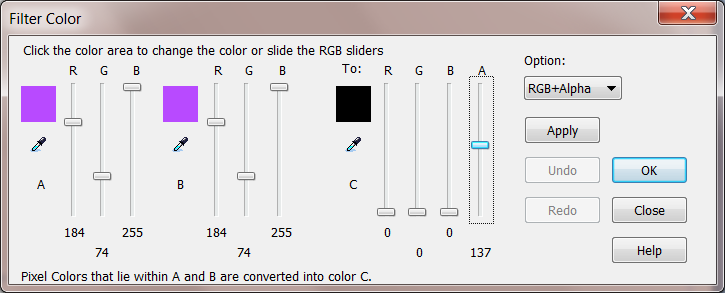

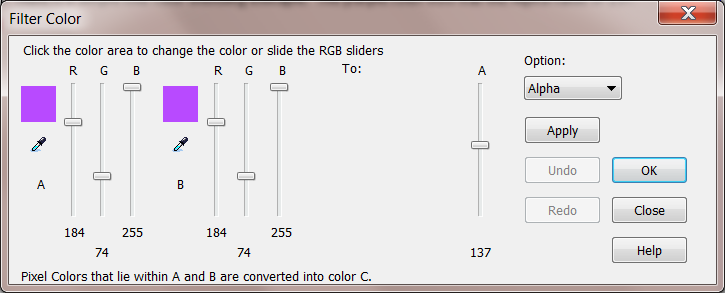

To do per-pixel Alpha blending on an image, select Bitmap/Filter Color to open Filter Color dialog box. Select Option/Alpha. Use the Pick Color tool to

pick the A color and B color. Here is a simple one color blending example using Alpha value 137 to filter the purple color only.

Alpha value 256

Alpha value 137

Select RGB+Alpha to convert the purple color to black and add Alpha value 137 at the same time. The purple color will convert to black color first,

move the Alpha value down to 137 to change to the grey color.
